1020 25

Varianty

Order Code Varianta
1020 25 connection thread acc. to EN 148-1/STANAG 4155 (40x1/7")
2020 25 connection thread acc. to GOST 8762-75 (40x4 mm)

Products by Market

  • FIRST RESPONDERS
  • GENERAL INDUSTRY
  • OIL & GAS INDUSTRY
  • CONSTRUCTION
  • POWER INDUSTRY

Vhodné pro

  • Full face maxk & mouth piece assembly
  • Half mask, quarter mask, protective hood

Technical Data

Diameter 110 ± 2 mm
Height incl . connection thread 78 mm
Weight 240 ± 5% g
Storage time (factory sealed) 5 years

The filter, when connected to a proper protective equipment,   is designed to provide a long lasting protection against a wide range of toxic industrial chemicals in the form of gases and vapours.

Reliable against hydrocarbon and organic solvents with the boiling point above 65°C (e.g. benzene,  cyclohexane,  decanol,   styrene,  toluene,  trichlorethylene, xylene, petrol, ethanol,  kerosene, diesel oil, mineral turpentine,  ethylene glycol, methyl isobutyl ketone,  isobutanol, etc.)

The filter does not provide protection against aerosols!

TYPE AND CLASS

A2

Vapours of organic compounds (solvents) with the boiling point above 65°C

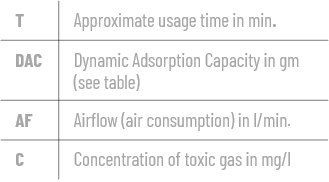

Breakthrough time of a filter is tested according to EN 14387+A1 at humidity 70% and flow rate 30 l/min., which is equivalent to the volume of air per minute used by an average person carrying out medium heavy work. The approximate life time (usage time) of a filter may be, under normal conditions, calculated by comparing the concentration at the workplace and the minimum Dynamic Adsorption Capacity (DAC) for the filter.

dac_vzorec               dac_vysvetlivky

Testing gas

Concentration of testing gas (ppm) Minimum breaktrough time (min.)

A2

 Cyklohexane

C6H12 5000 35
